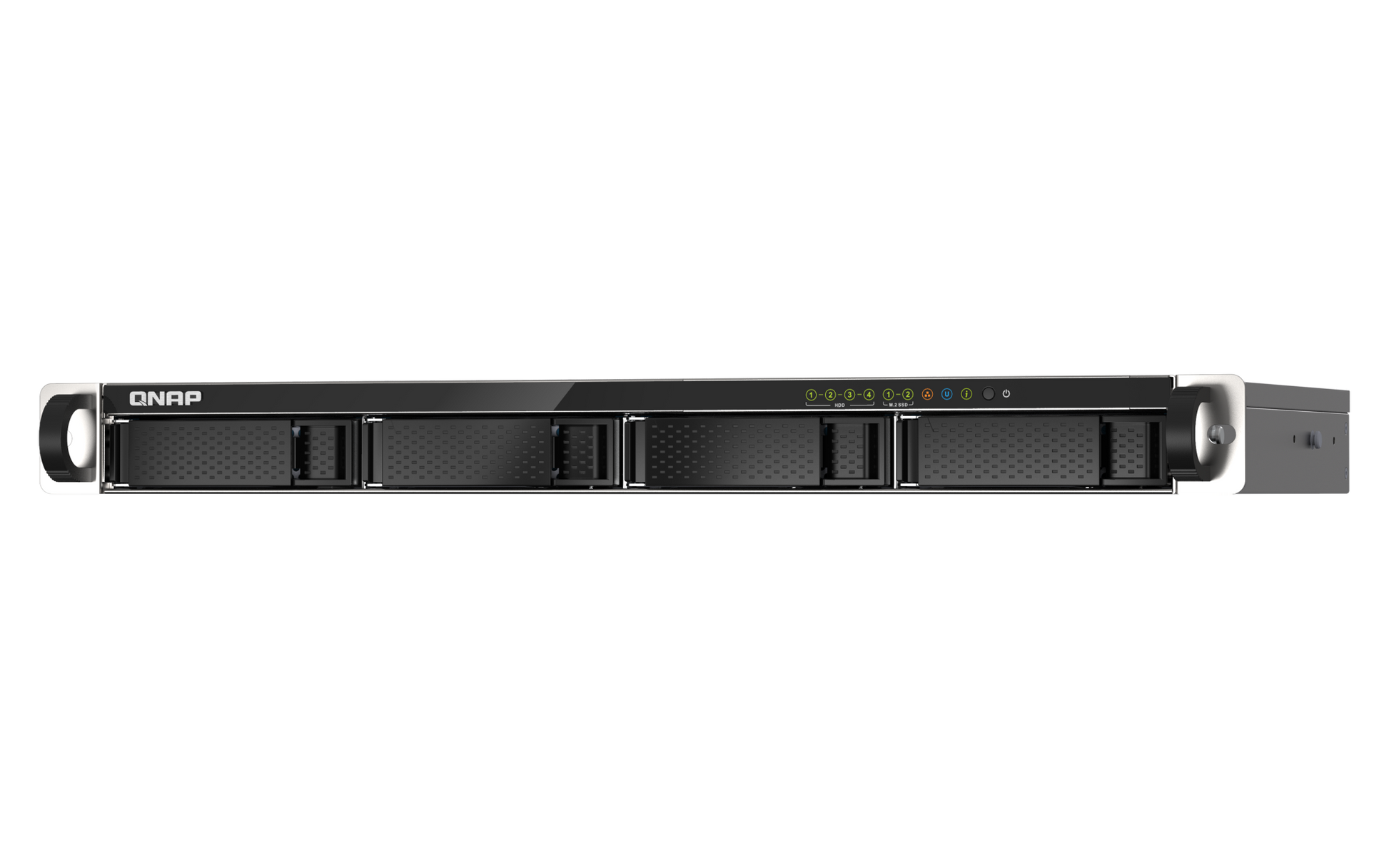

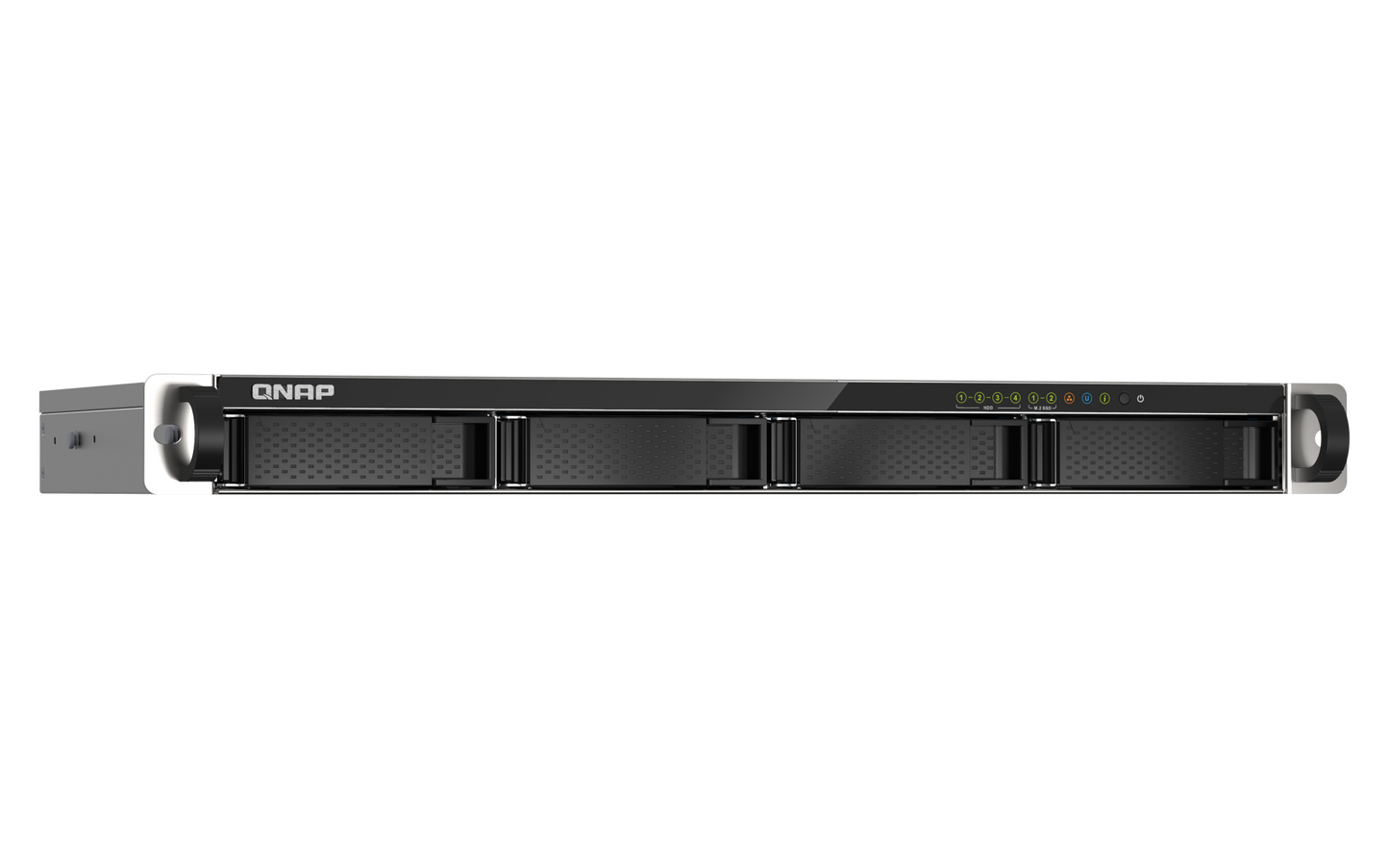

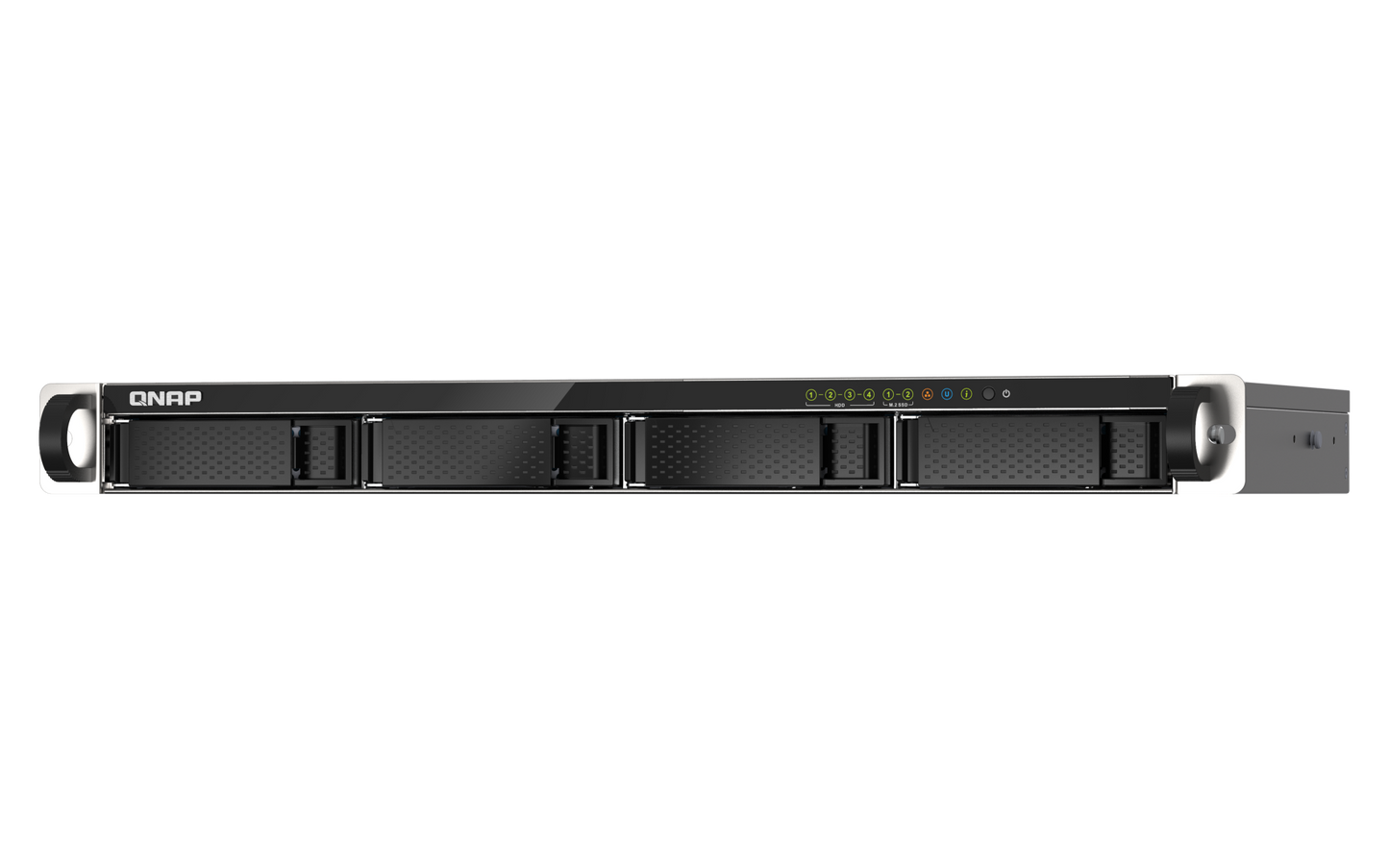

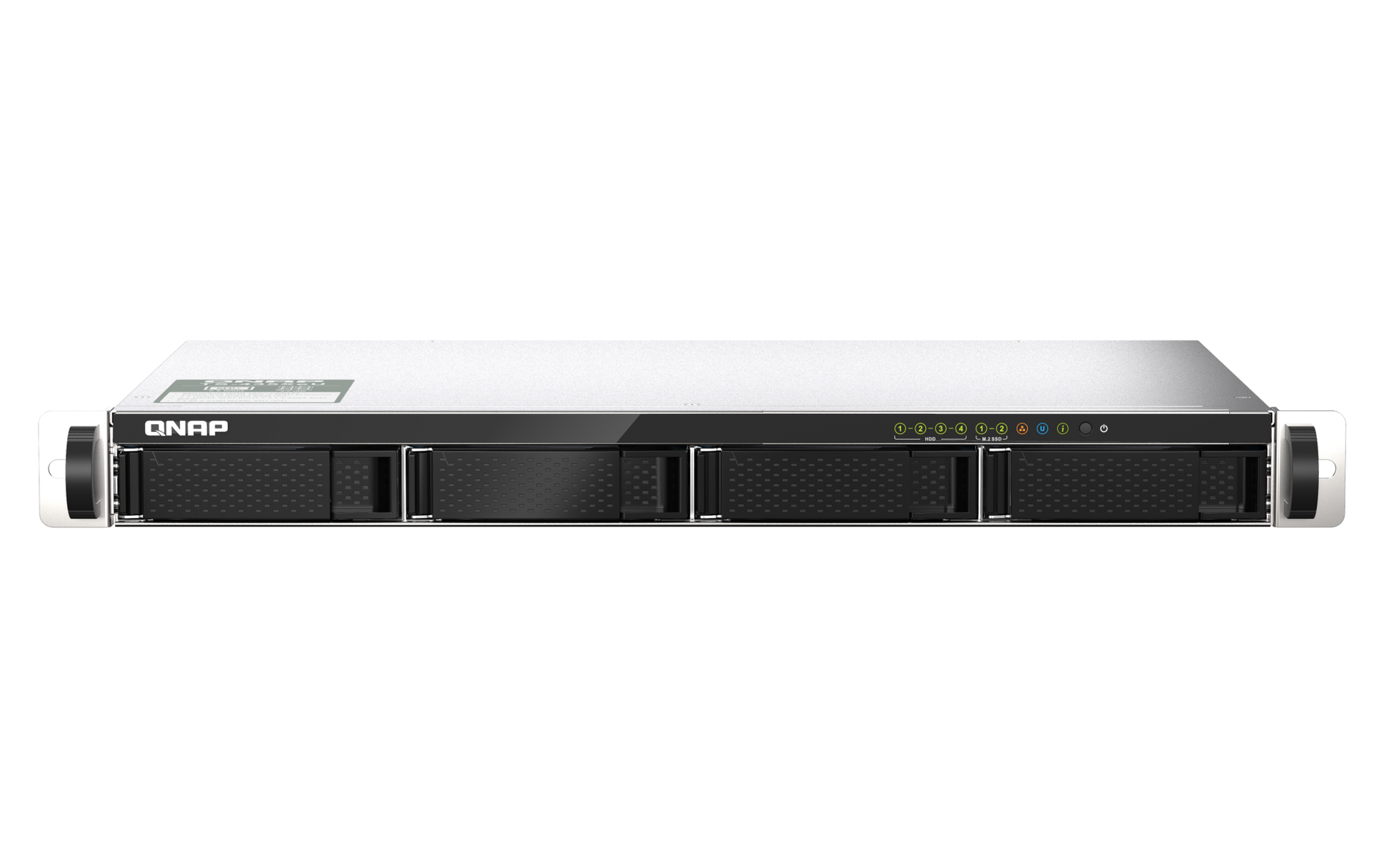

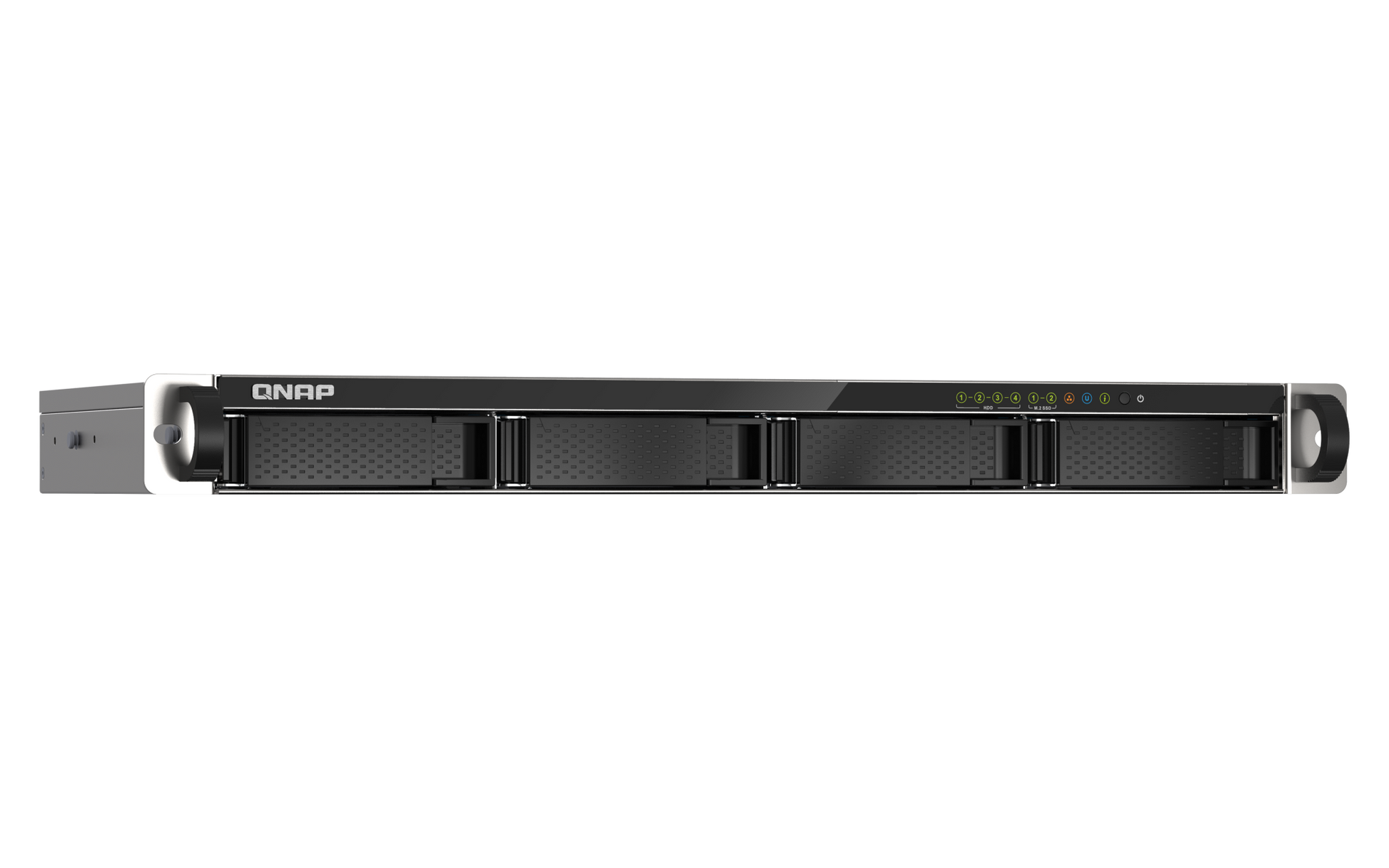

QNAP TS-435XeU 4-Bay Rackmount NAS – 10GbE SFP+ / 2.5GbE / Marvell ARM / M.2 Slots
- Sku: TS-435XeU-4G
- Vendor: Qnap
Contact For Prices.
Have a question?
Product Description
KEY FEATURES
- 1U Short Depth Rackmount Design (292mm depth) for compact server installations
- Dual 10GbE SFP+ Ports for high-speed enterprise connectivity
- Dual 2.5GbE RJ45 Ports with port trunking support (up to 570MB/s)
- Marvell ARM Cortex-A72 4-core 2.2GHz Processor with ECC memory support
- 4GB DDR4 Memory (expandable to 32GB with ECC support)
- 2× M.2 NVMe SSD Slots (PCIe Gen3) for cache acceleration
- Hot-Swappable 4-Bay Design with SATA 6Gb/s support
- RAIL-S01 Compatible for standard 19-inch rack mounting
PRODUCT DESCRIPTION
Enterprise-Grade Rackmount Storage Solution
The QNAP TS-435XeU delivers professional network storage in a compact 1U short depth rackmount form factor, ideal for IT cabinets, server rooms, and media control rooms across Kuwait. Featuring dual 10GbE SFP+ ports for high-speed connectivity and dual 2.5GbE RJ45 ports for flexible network configurations, this NAS supports demanding business applications with transfer speeds up to 2,224MB/s read. The 292mm depth makes it perfect for spaces with limited rack depth while maintaining full enterprise capabilities.
High-Performance ARM Architecture with Advanced Features
Powered by a Marvell ARM Cortex-A72 quad-core processor, the TS-435XeU offers efficient performance with support for ECC memory up to 32GB, ensuring data integrity for critical applications. Dual M.2 NVMe SSD slots provide cache acceleration options, while AES-128-GMAC acceleration enhances SMB signing performance for secure Windows environments. This combination makes it ideal for businesses in Kuwait requiring reliable, secure storage with enterprise networking features.
Professional Deployment and Scalability
Designed for standard 19-inch rack installation (with optional RAIL-S01 kit), the TS-435XeU supports comprehensive RAID configurations including RAID 5 and 6 for data protection. Three 40mm cooling fans ensure optimal thermal management in rack environments, while hot-swappable drive bays facilitate easy maintenance. Available at Al Shamali Computers, this rackmount NAS provides enterprise features at an accessible price point for Kuwaiti businesses upgrading their IT infrastructure.
TECHNICAL SPECIFICATIONS
| Category | Specifications |
|---|---|
| Model | QNAP TS-435XeU 4-Bay Rackmount NAS |
| Form Factor | 1U Short Depth Rackmount |
| Processor | Marvell ARM Cortex-A72 4-core 2.2GHz |
| Memory | 4GB DDR4 (expandable to 32GB, ECC supported) |
| Drive Bays | 4 × 3.5"/2.5" SATA 6Gb/s (hot-swappable) |
| M.2 Slots | 2 × M.2 2280 PCIe Gen3 NVMe |

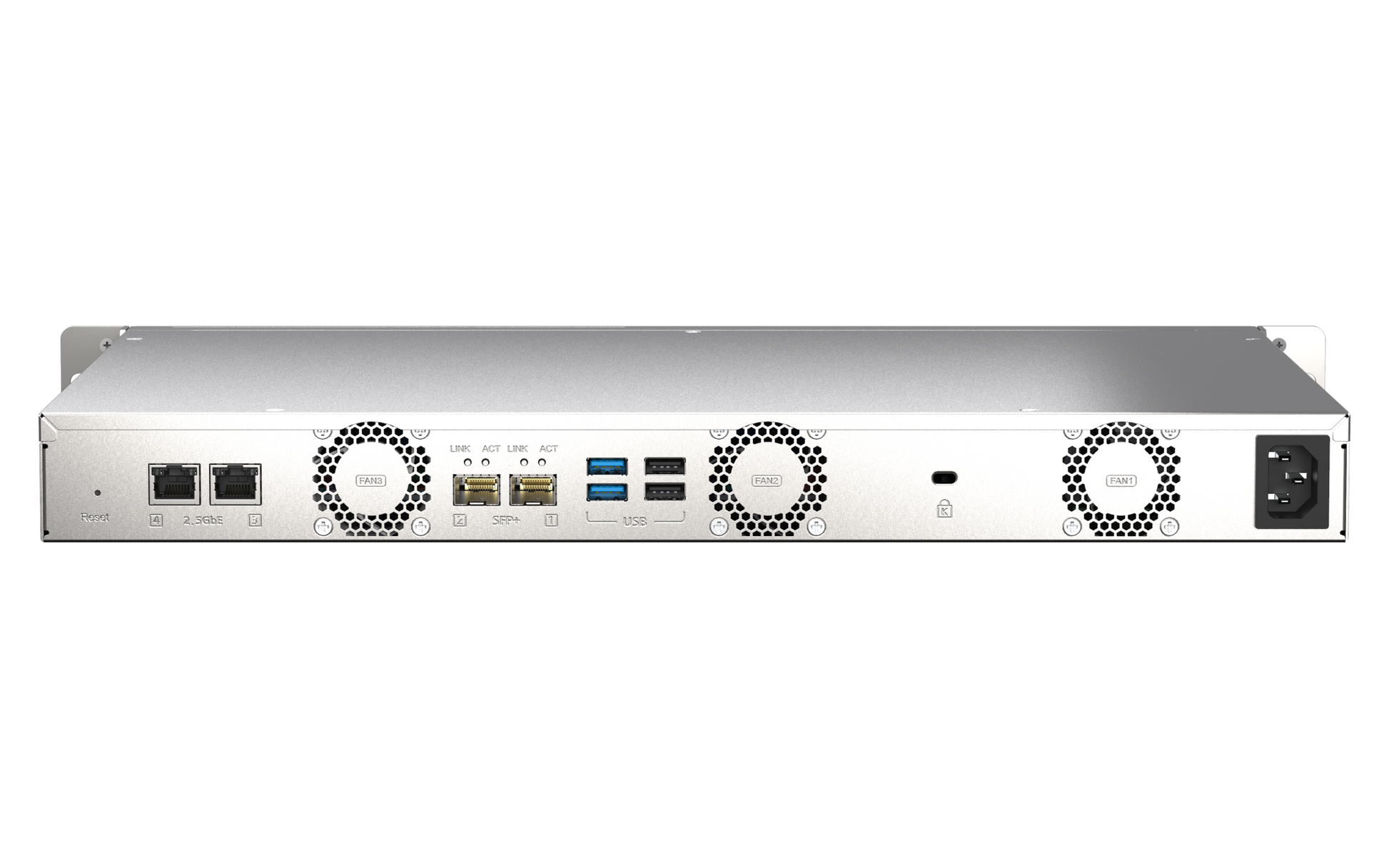

| Network Ports | 2 × 10GbE SFP+, 2 × 2.5GbE RJ45 |
| USB Ports | 2 × USB 3.2 Gen 1, 2 × USB 2.0 |
| Rack Depth | 292mm (11.49 inches) |
| Cooling System | 3 × 40mm Fans |
| Performance | 2,224MB/s Read, 794MB/s Write (10GbE) |
| RAID Support | JBOD, Single, RAID 0, 1, 5, 6, 10 |
| Power Supply | 100W Internal PSU |
| Power Consumption | 30.9W (typical), 17.4W (standby) |
| Dimensions | 43.3 × 430 × 292.12 mm (1U) |
| Warranty | 3 Years |
